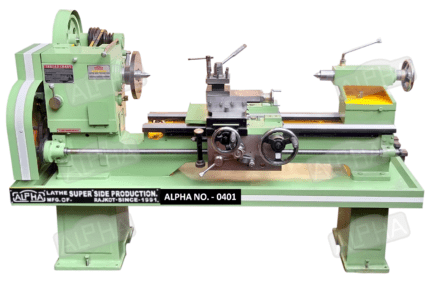

Automatic Cone Pulley Lathe Machine (PLUS GST)
Automatic Cone Pulley Lathe Machine (PLUS GST) Original price was: ₹175,200.00.Current price is: ₹157,700.00.
Back to products
5.25 FEET HEAVY LIGHT DUTY LATHE MACHINE RAJKOT PRICE (GST PAID)
5.25 FEET HEAVY LIGHT DUTY LATHE MACHINE RAJKOT PRICE (GST PAID) Original price was: ₹166,000.00.Current price is: ₹132,800.00.
-20%
Click to enlarge
Cone Pulley Lathe

3.5 FEET HEAVY LIGHT DUTY LATHE MACHINE RAJKOT PRICE (GST PAID)

Original price was: ₹150,700.00.Current price is: ₹120,500.00.



Automatic Grade
Semi Automatic
Layout
Horizontal
Brand/Make
ALPHA
Swing Over Cross Slide
165 mm..
Condition
New
We are a noteworthy organization in the domain, engaged in providing a high-quality range of Cone Pulley Lathe Machine.
Compare
Add to wishlist
Categories: ,
Description
ALPHA NO. - 0121

SPECIFICATION

ModelALPHA NO. – 0121
Bed length (With head stock )1060 mm
Bed Width240 mm
Gap Length100 mm
CAPACITIES
Height Of Center165 mm
Swing Over Bed320 mm
Swing Over Gap500 mm
Swing Over Cross Slide170 mm
Admit Between Center430 mm
Movement of Cross Slide165 mm
Movement of Compound Slide110 mm
HEAD STOCK
Taper Bore In Spindle SleeveMT-3
Spindle Thread8 TPI
Spindle Bore40 mm
No. of Spindle Speed8
TAIL STOCK
Spindle Dia.38 mm
Taper in SpindleMT-3
Spindle Movement120 mm
THREADS
Metric Pitch0.5 to 7 mm
Pinch Pitch4 to 48 TPI
Lead Screw4 TPI
ELECTRICAL
Motor Power1 H.P
DRIVE
V Belt
GENERAL
Weight (Approx.)400 KG
Floor Space (Approx.)L-1300 mm
W-915 mm
ALPHA NO. - 0121

SPECIFICATION

Headstock

The rigid box-type constructed of headstock performs for thermal
displacement and vibration. A spindle is supported by super precision roller bearing and ball
bearing. All gears, splines, spindles are made from 20 MnCr5 material and hardened ground.

Gear Box

A specially designed gear mechanism is easy to handle quick gear system for
each selection of feed and commonly used threads (in metric, inch, module and DP) combined operation
of two leaver with changing gears.

Bed

Induction Hardened Bed 430 BHN

Tailstock

The sturdy construction of tailstock with Tang Shank type tailstock sleeve
is capable of stable accommodation of heavy work. Double locking system ensures powerful tailstock
clamping.

Carriage – Saddle

Turcite B Loner Bearing System provides extra cutting strength and long
life accuracy. It’s working as Anti-Friction system and gives smooth movement of Carriage on Bed.

Apron

Apron designed to totally enclosed oil bath system and lever type
arrangement for automatic feeds. BANKA is providing self-handle which is used to run the machine in
auto.if an accident will occur then self-handle will automatically release and apron will stop
immediately.

OVER....

MODEL ALPHA NO. - 0121
 Bed length (With head stock ) 1060 mm
 Bed Width 240 mm
 Gap Length 160 mm
 Width of Bed 180 mm
 Spindle Bore 20
 Spindle Nose M.T 3
 Spindle Speed No. 9
7 FEET - HEAVY DUTY TYPE LATHE MACHINE

ALPHA NO.- 0201 (EXTRA SUPER MODEL)

EXPLORE More
ParticularsTechnical Specifications
 Height of centers 150 mm
 Swing over Bed 300 mm
 Swing over side 160 mm
 Width of Bed 180 mm
 Spindle Bore 20
 Spindle Nose M.T 3
 Spindle Speed No. 9
MODELALPHA NO. - 0121
Bed length (With head stock ) 000
 Bed Width
 Gap Length
Height Of Center
 Swing Over Bed
 Swing Over Gap
 Swing Over Cross Slide
 Admit Between Center
 Movement of Cross Slide
 Movement of Compound Slide
 Taper Bore In Spindle Sleeve
 Spindle Thread
 Spindle Bore 20 x 20 mm
 No. of Spindle Speed 60/0.08-1
 Feeds Transverse 60/0.02-0.25
 Metric thread 40/0.4-7 mm
 Thread Per Inch 40/70-4 TPI
 Lead Screw 4 TPI
 Main Motor 0.5 HP
 Admit Between Center 500
 Bed Length Feet 3.2’
 Weight (Kg.) Appro. 170
7 FEET - HEAVY DUTY TYPE LATHE MACHINE

ALPHA NO.- 0201 (EXTRA SUPER MODEL)

EXPLORE More

<strong>&nbsp;Height of centers</strong></td><td width="50%"><strong>&nbsp;000</strong></td></tr><tr><td width="50%">

ParticularsTechnical Specifications
 Height of centers 150 mm
 Swing over Bed 300 mm
 Swing over side 160 mm
 Width of Bed 180 mm
 Spindle Bore 20
 Spindle Nose M.T 3
 Spindle Speed No. 9
ModelALPHA NO. – 0121
Bed length (With head stock )1060 mm
Bed Width240 mm
Gap Length100 mm
HEAD STOCK
Taper Bore In Spindle SleeveMT-3
Spindle Thread8 TPI
Spindle Bore40 mm
No. of Spindle Speed8
TAIL STOCK
Spindle Dia.38 mm
Taper in SpindleMT-3
Spindle Movement120 mm
CAPACITIES
Height Of Center165 mm
Swing Over Bed320 mm
Swing Over Gap500 mm
Swing Over Cross Slide170 mm
Admit Between Center430 mm
Movement of Cross Slide165 mm
Movement of Compound Slide110 mm
Metric Pitch0.5 to 7 mm
Pinch Pitch4 to 48 TPI
Lead Screw4 TPI
ELECTRICAL
Motor Power1 H.P
DRIVE
V Belt
GENERAL
Weight (Approx.)400 KG
Floor Space (Approx.)L-1300 mm W-915 mm
7 FEET - HEAVY DUTY TYPE LATHE MACHINE

ALPHA NO.- 0201 (EXTRA SUPER MODEL)

EXPLORE More

MODEL

6” INCH (150mm)

10” INCH (250mm)

12” INCH (304mm)

ADJUSTABLE STROKE

10 to 150mm

10 to 250mm

10 to 304mm
